300KN Hydraulic Puller for stringing conductor from China manufacturer

300KN Hydraulic Puller for stringing conductor

Price:	10.0~300000.0 USD
Payment Terms:	T/T,L/C,D/P,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: SA-YQ300

Production Capacity: 30 sets per month

Delivery Date: within 30 days

Max pull: 300kN

Max speed: 5km/h

Bull-wheel diameter: 960mm

Means of Transport: Ocean,Land,Air

Packing: according to customers' req...

Brand Name: EASTERN GRID

Speed at max pull: 2km/h

Pull at max speed: 160kN

Max rope diameter: 38mm

All kinds of stringing equipment can be manufactured according to the customers's requirements.

The products name 30 Ton Hydraulic Puller for stringing conductor

Performance

Max pull	300kN
Speed at max pull	2km/h
Max speed	5km/h
Pull at max speed	160kN
Note:the basic machine performance is calculated at 20°C and at sea level

Characteristics

Bull-wheel diameter	960mm
Max rope diameter	38mm
Mass	11500kg
Dimensions	5900x2450x2890

Engine

Diesel	298 Kw/2100 rpm
Cooling system	Water
Electrical system	12V

Main Configuration

Engine	Cummins(USA)water cooled
Main variable pump	Rexroth(BOSCH)
Main Motor	Rexroth(BOSCH)
Reducer	RR(Italian)
Main Hydraulic valve	Rexroth(BOSCH)
Radiator	AKG
Hydraulic instrument	WIKA

Hydraulic Transmission

Closed hydraulic circuit for stepless speed variation in both rotating directions.

This machine is provided with a pull pre-setting system that maintains the pre-set pulling value(also when the speed is reduced to "0")by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.

Configuration

Negative self-acting hydraulic brake

Hydraulic dynamometer with set-point and automatic control of maximum pull.

Hydraulic oil cooling system

Control instruments for hydraulic system and diesel engine.

Rigid axle for towing at max speed of 30km/h.

On board reel winder with automatic level wind,suitable for standard reels.

Pull pre-setting system

Mechanical front stabilizer

Grounding connection point.

Working Pictures:

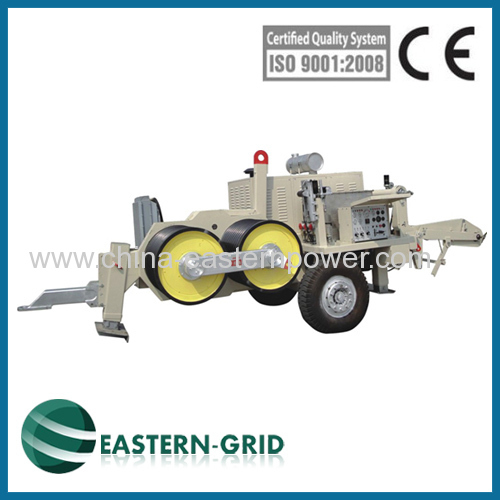

30 Ton Hydraulic Puller for stringing conductor

Shipment

1. The machines will be shipped in container

2. We will ship the products within one month normally after receiving the payment.

3. Stock is available for standard product.

Payment

1. We accept T/T and L/C.

2. Please send swift copy of T/T if you arrange payment by T/T

3. Please send us the L/C draft to us before issue L/C.

Why choose us:

1. High quality and competitive price

2. Leading and biggest manufacture for stringing equipment in China.

3. 25 years of production experience and more than 1000 customers in the country and abroad market. The machines have been sold to more than 20 countries.

4. Big stock condition for fast shipment.

5. Detailed pre-sales service and fast active after-sales service. Response within 12 hours after-sales service
