Hydraulic Tensioner 2x35KN for Power Construction from China manufacturer

Hydraulic Tensioner 2x35KN for Power Construction

Price:	5000.0~100000.0 USD
Payment Terms:	T/T,L/C,D/P,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: SA-YZ2X35

Production Capacity: 30 sets per month

Delivery Date: within 30 days

Max tension: 2X35Kn or 1x70kN

Bull-wheel diameter: 1200mm

Mass: 4000kg

Means of Transport: Ocean,Land,Air

Packing: according to customers' req...

Brand Name: EASTERN GRID

Max speed: 5km/h

Max conductor diameter: 32mm

Dimensions: 4400x2100x2600

The machine is suitable to string one or two ropes or bundled conductors with two pairs of bull-wheels with completely independent controls.

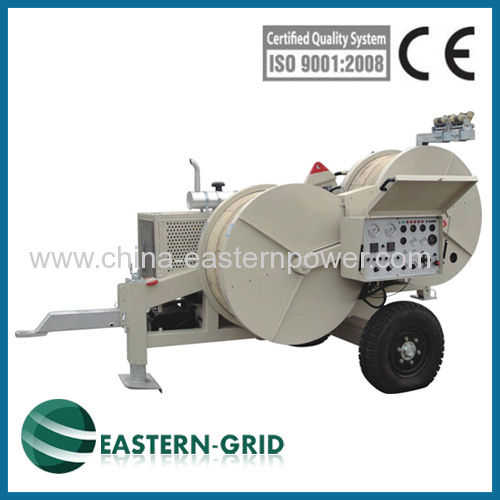

The products name Hydraulic Tensioner2x35kN for two bundles conductor

SA-YZ2x35 Hydraulic Tensioner

The machine is suitable to string one or two ropes or bundled conductors with two pairs of bull-wheels with completely independent controls.

The bull-wheel grooves are made up of high resistance interchangeable nylon sectors.

The machine is completely electronically controlled.

Performance

Max tension	2X35Kn or 1x70kN
Max speed	5km/h
Note:the basic machine performance is calculated at 20°C and at sea level

Characteristics

Bull-wheel diameter	1200mm
Max conductor diameter	32mm
Mass	4000kg
Dimensions	4400x2100x2600

Engine

Diesel	51 Kw/2500 rpm
Cooling system	water
Electrical system	12V

Main component

Engine	Chinese famous brand water-cooled engine
Main pump	Rexroth(BOSCH)
Main motor	Rexroth(BOSCH)
Reducer	RR(Italian)or Rexroth
Radiator	AKG
Hydraulic instrument	WIKA
Hydraulic valve	Rexroth(BOSCH)

Hydraulic Transmission

2 Hydraulic half-closed circuit that provides very sensitive tensioning control and negligible deviations of tension in case of speed change.

The machine is provided with tension pre-setting system.

Configuration

Negative self-acting hydraulic brake

Hydraulic dynamometer.

Hydraulic oil cooling system

Mechanical meter counter.

Rigid axle for towing at max speed of 30km/h with mechanical parking brake.

Gearbox with 2 operating positions:

--neutral position(with free bull-wheels for conductor loading and unloading)

--nominal tension position

Hydraulic power pack to control up to 2 separate drum stands with hydraulic motor,not independent control.

Mechanical actuated front plough stabilizer.

Grounding device on board.

TRANSPORTATION AND STORAGE

(1) LONG DISTENCE TRANSPORTATION –BY TRUCK

For long distance transportation with overhead traveling craned or lift trucks hoisting tensioner to more

than 10 dun truck through hoisting point. Transport after reliable fixed.

(2) SHORT DISTANCE TRANSPORTATION –ROAD TOWING

Road towing with trailer via towing eye, Operate front stabiliser let towing eye connect with pothook

while road towing.

(3)STORAGE

We recommend stocking the machine under a roof, when stock retract front stabiliser, support back

stabiliser, reduce tyre load and protect tyre. Cover with paulin if stock in out door.

Working pictures:
Hydraulic Tensioner 2x35kN for two bundles conductor

Shipment

1. The machines will be shipped in container

2. We will ship the products within one month normally after receiving the payment.

3. Stock is available for standard product.

Payment

1. We accept T/T and L/C.

2. Please send swift copy of T/T if you arrange payment by T/T

3. Please send us the L/C draft to us before issue L/C.

Why choose us:

1. High quality and competitive price

2. Leading and biggest manufacture for stringing equipment in China.

3. 25 years of production experience and more than 1000 customers in the country and abroad market. The machines have been sold to more than 20 countries.

4. Big stock condition for fast shipment.

5. Detailed pre-sales service and fast active after-sales service. Response within 12 hours after-sales service
