large diameter stringing block mounted on tower from China manufacturer

large diameter stringing block mounted on tower

Price:	5.0~5000.0 USD
Payment Terms:	T/T,L/C,D/A,D/P,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: SHD

Production Capacity: 5000 pieces per month

Delivery Date: within 7 days

Material: aluminous or MC nylon

function: stringing conductors

Means of Transport: Ocean,Land,Air

Packing: according to customers' req...

Brand Name: EASTERN-GRID

types of connections: fixed, swivel-type,a hook

max conductor: ACSR 400

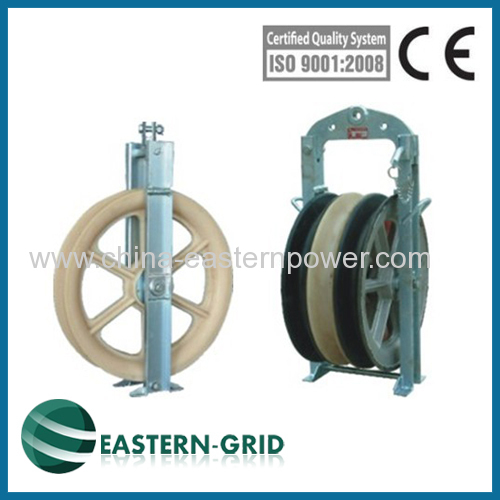

large diameter stringing pulleys running out block mounted on tower are suitable for stringing conductor max up to ACSR 400.

large diameter stringing pulleys running out block mounted on tower

large diameter stringing pulleys running out block mounted on tower are suitable for stringingconductor max up to ACSR400.

large diameter stringing pulleys running out block mounted on tower are made of aluminium alloy/ MC nylon mounted on ball bearings; the groove is lined by a neoprene ring orby wear-proof interchangeable nylon or aluminium wheels. The frame is made of galvanizedsteel. The pulleys can be supplied with three types of connections: fixed(B),swivel-type(C) or with a hook supplied with safety lock(D). Grounding device orcomplete conductive sheaves can be supplied on demand.

Ordernumber	Model	Numberof wheel	Ratedload(kN)	Weight(kg)	Features
10101	SHD508	1	20	18	Rubber Aluminoussheave
10102	SHS508	3	40	61	Middle:cast steel sheave Conductor: Rubber aluminoussheave
10103	SHW508	5	60	93	Middle:cast steel sheave Conductor: Rubber aluminoussheave
10104	SHDN508	1	20	16	MC nylonsheave
10105	SHSLN508	3	40	47	Middle:MC nylon sheave Conductor:Rubber aluminous wheel
10106	SHWLN508	5	60	79	Middle:MC nylon sheave Conductor:Rubber aluminous wheel
10107	SHSQN508	3	40	43	MC nylonsheave
10108	SHWQN508	5	60	70	MC nylonsheave

Note: Blockdimension (outside diameter × root diameter × sheave width) Φ508×Φ408×75. But we cansupply Block dimensionΦ508×Φ408×100,by customers' requirement.

DesignDiagram :

large diameter stringing pulleys running out block mounted on tower
