Head Boards for two or three bundles conductors from China manufacturer

Head Boards for two or three bundles conductors

Price:	5.0~500.0 USD
Payment Terms:	T/T,L/C,D/A,D/P,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: SZ

Production Capacity: 3000 pcs per month

Delivery Date: within 7 days.

material: highly tensile galvanized s...

Applicable: 2 or 3 bundles conductor

Features: balancing

Means of Transport: Ocean,Land,Air

Packing: according to customers' req...

Brand Name: EASTERN-GRID

used for: head board

order number: SZ

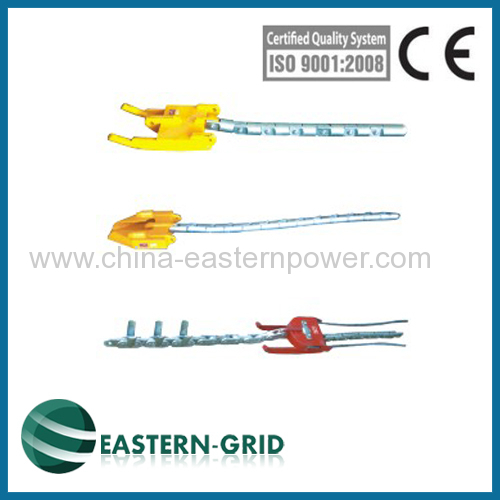

Running board for two/2 or three/3 bundles conductors is specifically designed to connect the pulling rope, with 2 or 3 bundled conductors.

Running board for two/2 or three/3 bundles conductors

Running board for two/2 or three/3 bundles conductors is specifically designed to connect the pulling rope, with 2 or 3 bundled conductors.The equipment includes the necessary rope lengths and swivel joints; quantity and models are indicated in the following tables. Special models with different characteristics can be designed according to customers' requirement.

Running board for two/2 or three/3 bundles conductors

Ordernumber	Model	Ratedload (kN)	Weight(kg)	Widthof tackle wheel	Features
17220	SZ2-8	80	17	75	Independent
17221	SZ2-8A		19	100
17222	SZ2-8B		19.5	110
17223	SZ2A-8	80	90	100	Poisingsheave
17224	SZ2B-13	130	55	110	Independent
17225	SZ2C-13	130	50	110	Independent

·Note: Specify dimension of the tackle in the contract for your need.

Balancing Head Board:
Running board for two/2 or three/3 bundles conductors

Fixed Head Board:
Running board for two/2 or three/3 bundles conductors

Model SZ3A-10 running board for three bundle conductors (balancing type )
Running board for two/2 or three/3 bundles conductors

Ordernumber	Model	Ratedload (kn)	Weight(kg)	Width oftackle wheel (mm)	Steelrope length (m)
17228	SAZ3A-10	100	99	100	1×30+1×15

·Note: Specify dimension of the tackle in the contract for your need.

Application: It is used for stringing 2 or 3 bundled conductors, to connect the pilot wire rope with conductors. The vertical heavy links hold running board in horizontal position for correct entrance into stringing blocks. The balance pulley type is normally used for 2 or 3 bundled conductors which are pulled from same bull wheels of tensioner.The running boards are supplied with pulling rope swivels and conductor swivels to match linepull and tension requirements.
