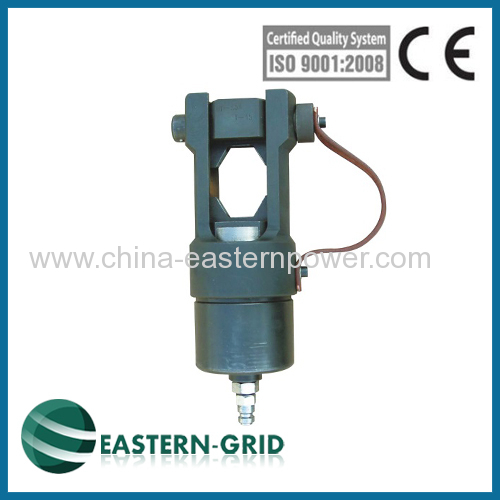

Light 2.5T hydraulic compressors from China manufacturer

Price:	50.0~3000.0 USD
Payment Terms:	T/T,L/C,D/A,D/P,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: QY

Production Capacity: 500 sets per month

Delivery Date: within 10 days

Model: QY

Applicable diameter: 16-630 mm2

Applicable: conductor, earth wire and c...

weight: 6.5kg

Means of Transport: Ocean,Land,Air

Packing: according to customers' req...

Brand Name: Eastern-Grid

Max Compress(kN): 250

Stroke (mm): 25

Max oil pressure (MPa): 70

Light 2.5T hydraulic compressors is used for compressing copper-aluminum terminals.

Light 2.5T hydraulic compressors for copper-aluminum terminals

Ordernumber	Max compress (KN)	Max oilpressure (MPa)	Applicablediameter	Stroke (mm)	Weight(kg)
16111	250	70	16-630 mm2	2.5	6.5

Use: For compressing copper-aluminum terminals.

Features: International standard structure; convenient operation.

Note :1.Matched with manual or single tube electrical pump.

2. Need to purchase matched 400, 500, 630.mm2 indipedent press die (order number 16111A) separately. Any need for 16-630mm2 interchange YML12 hexangular press die (order number 16195A) should be purchased seperately.

Accessories For Hydraulic Compressors

Manual pump
Light 2.5T hydraulic compressors for copper-aluminum terminals

Ordernumber	Model	Ratedoil pressure (MPa)	Weight(kg)	Note
161162	YBG-60-C	60	8	Made inChian; high-low pressure with double speed; oil capacity :1.0L.
16163	YBG-60	70	8	Import;high-low pressure withdouble speed;oil capacity: 1.0L.
